Forged Stainless

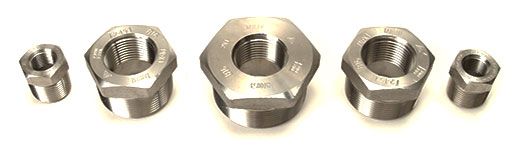

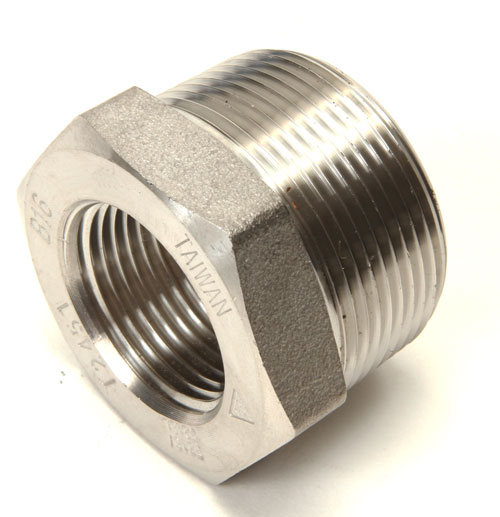

- Forged Stainless Hex Bushings conform to ASTM A182.
- Stocked in sizes from (1/2" X 1/4") to (2" X 1-1/2").
- The larger number in each size is the nominal pipe diameter of the outside (male) threads and the smaller number is for the inside (female) threads.
- All are of "bar" class, which means the item is made from solid bar stock and can be used for ratings up to and including class 6000#.
- Forged Stainless Hex Bushings are available in grades 304L and 316L (L=low carbon).
Sizes are Nominal Pipe Size (NPS) - size chart
